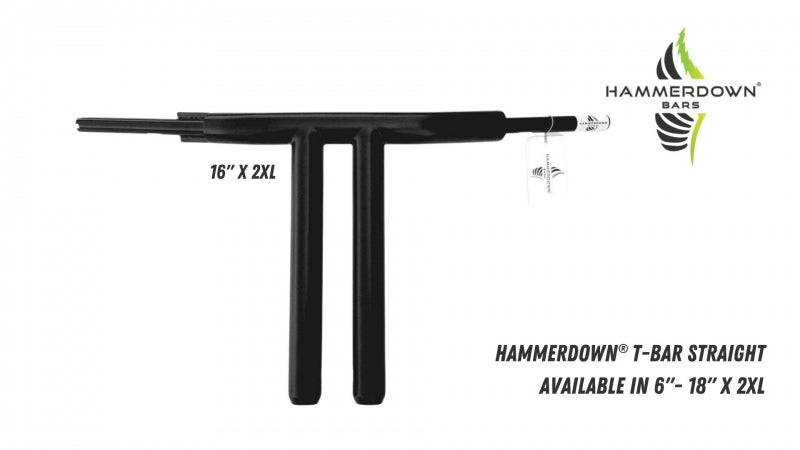

HAMMERDOWN® T-BARS

- Custom Made to fit your bike
- Made from 3.2mm wall thickness mild steel.
- Mitered bends tig welded and polished, bead blasted before powder coating
- 42mm - 48mm diameter
- Powdercoated & Chrome finish
- 5"- 18" and fit most Harley-Davidson® with the risers at a 90mm hole center.
- Speedo mount for V-ROD®, V-ROD Muscle® and Breakout® available. Please note all bars designed for V-ROD® come with speedo bracket unless otherwise stated.
- Welding procedures are done in accordance with AS/NZS 2980:2018
- Fly-by-wire optional
- Compatible with throttle by wire or cable throttle if required
- Compatible with hydraulic clutch if required
- Slotted holes for internal wiring
- Pullback optional
- All latest bars >2800 - MPI Certificate available at an additional cost
- Starting from $1250.00 incl GST
Talk to yMotorcycle Doctors for installation and pricing. Prices are subject to change without notice.
NOTE: All T Bars risers run ½” UNC BOLT SIZE – and are designed to accept factory controls.
BAR ORDERS: When ordering bars discuss your requirements with us - let us know if you are using aftermarket parts as this will affect bar fitment.
The cutout for the brake and clutch reservoirs are 60mm unless otherwise stated.
MEASURING THE BARS: Bar height is measured from the bottom of the base to the centre of the top bar.
INSTALLATION: Hammerdown® Bars have no control over and accept no liability in respect to incorrect bar installations. Hammerdown® Bars recommend a qualified motorcycle service technician perform the installation.
